WHAT IS A TSA LOCK?

What is a TSA Lock?

WHAT IS A TSA LOCK?

TSA: TRANSPORT SECURITY ADMINISTRATION

TSA locks are required for all customers travelling to the USA. The TSA screens every passenger’s baggage before it is placed on the plane. At their discretion, from time to time, they choose to open a passenger’s luggage for closer inspection. When this occurs, if the luggage is fitted with any lock other than those approved by the TSA, they will destroy whatever lock is fitted to gain access.

Luggage locks approved by the TSA have a universal master key that will open the locks. Only the TSA have a copy of this master key. Every TSA approved lock has an identifying mark that shows it may be opened by the master key. All Samsonite TSA locks feature the red TSA logo.

RESETTING YOUR LOCK

RESETTING YOUR LOCK

  1. Have the lock set on your original combination.
  2. Repeat steps as described for each variation of lock (see below).

NEED ASSISTANCE?

Feel free in get in contact with us, our Customer Service team are available 9 AM - 5 PM Monday-Friday, call 1800 331 690.

All locks are set to a default of 0-0-0 at the factory. If you’ve forgot your unique combination you are going to need assistance from a Samsonite Authorised Repair Centre to unlock your combination lock. To locate your nearest Repair Centre, please click here.

Resetting Your TSA Lock

LOCK VARIATIONS

Please find your lock instructions below:

Top

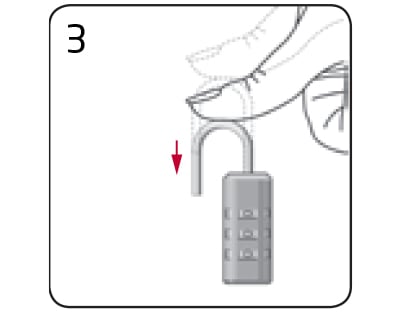

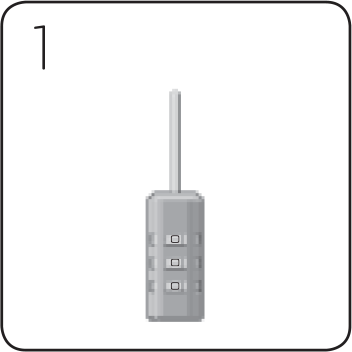

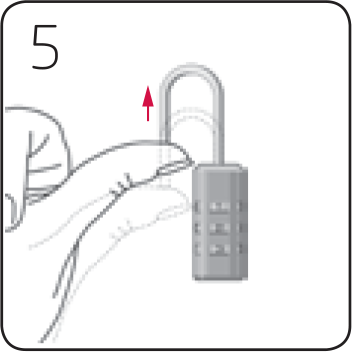

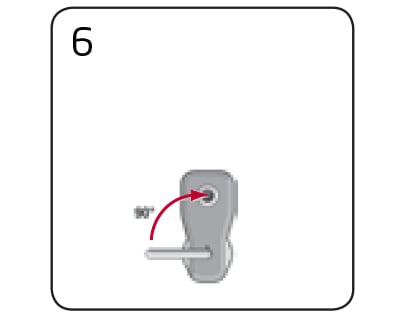

TSA COMBINATION LOCKS

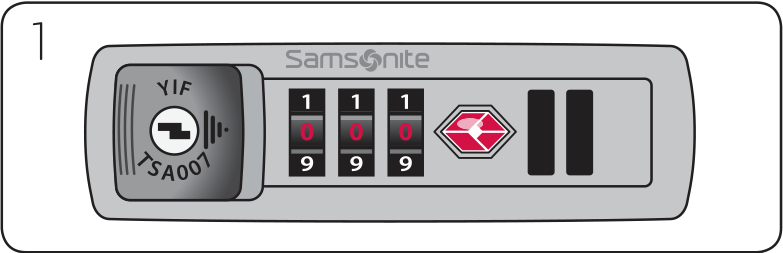

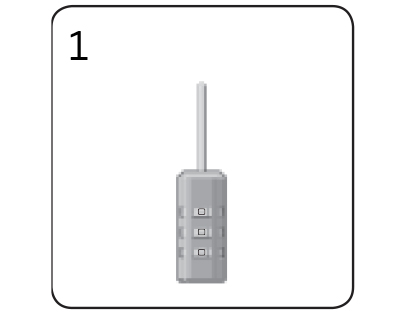

SET CODE TO 000

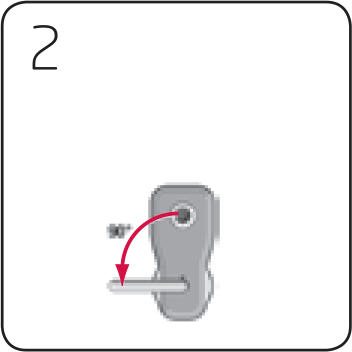

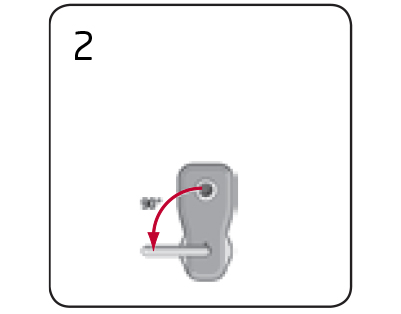

TURN 90°

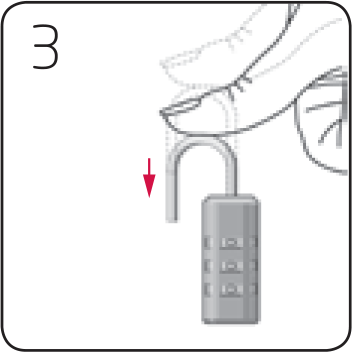

PUSH DOWN

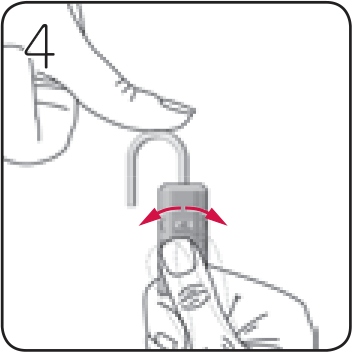

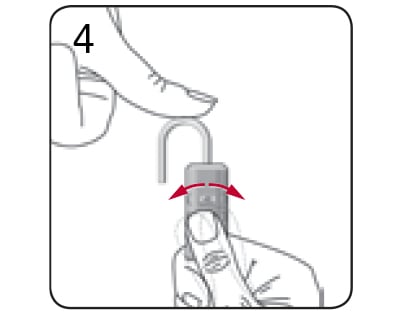

HOLD DOWN & SET CODE

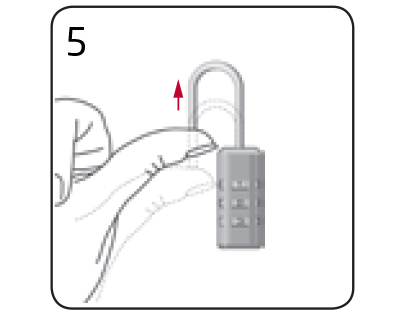

PULL UP

TURN BACK TO LOCK POSITION

Top

FEATURED ON 72 HOURS DLX

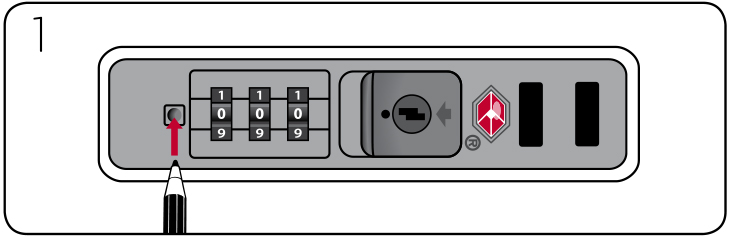

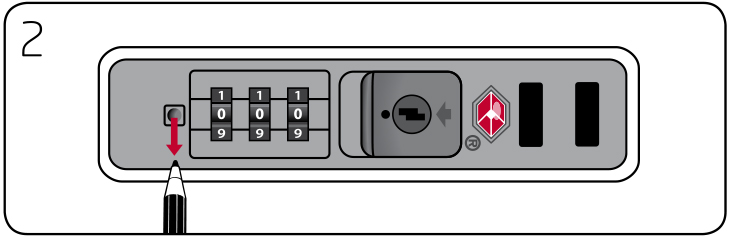

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

REMOVE PEN, BUTTON WILL STAY PRESSED IN

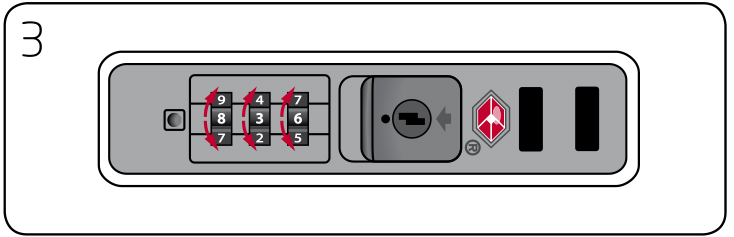

SET CHOSEN CODE

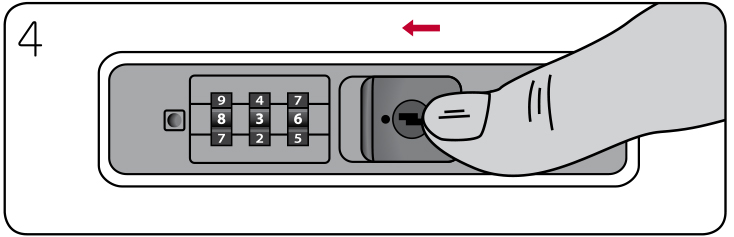

SLIDE BUTTON ACROSS TO SET CODE

Top

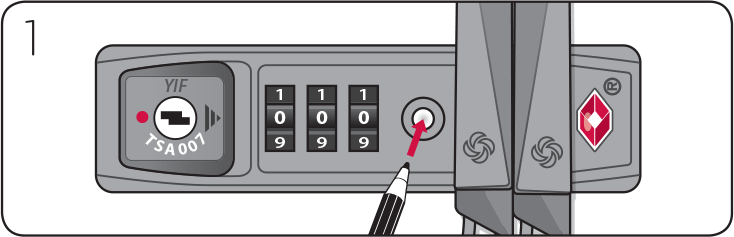

FEATURED ON LITE-BIZ

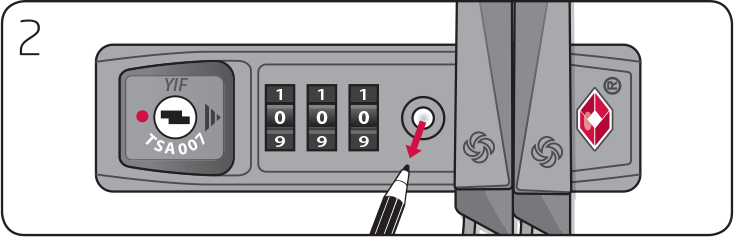

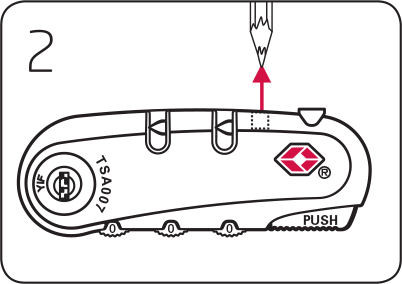

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

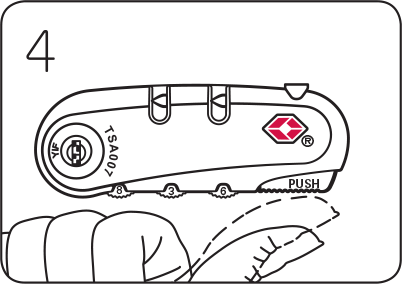

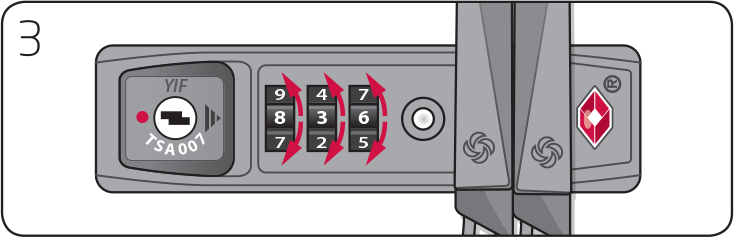

SET CHOSEN CODE

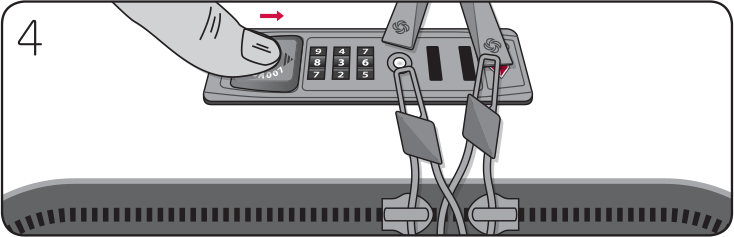

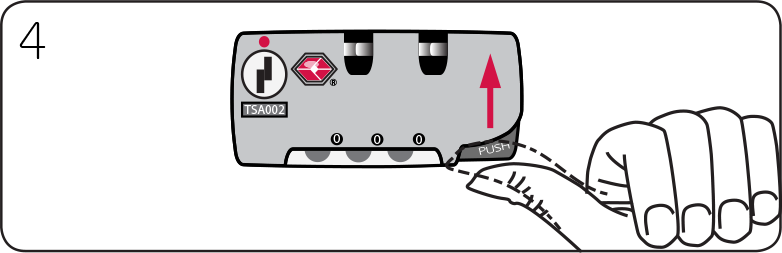

RELEASE BY PRESSING SIDE BUTTON

Top

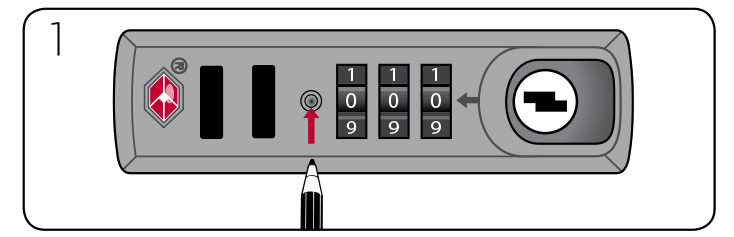

FEATURED ON ARQ AND EVOA

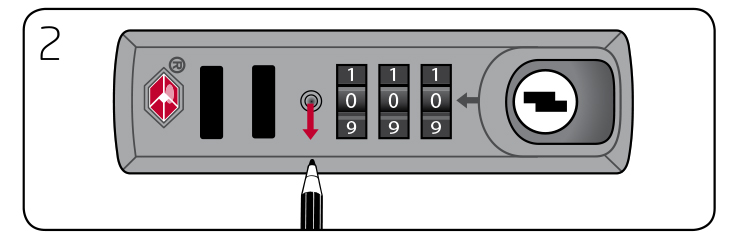

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

REMOVE PEN, BUTTON WILL STAY PRESSED IN

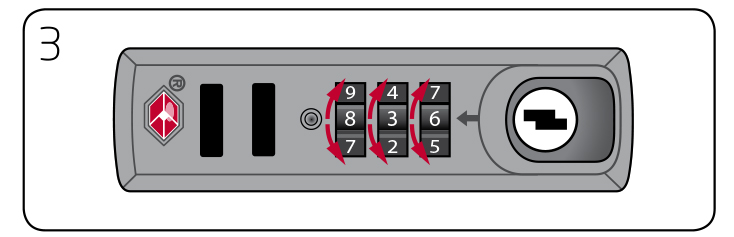

SET CHOSEN CODE

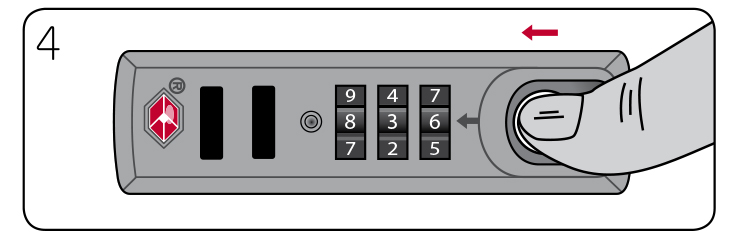

SLIDE BUTTON ACROSS TO SET CODE

Top

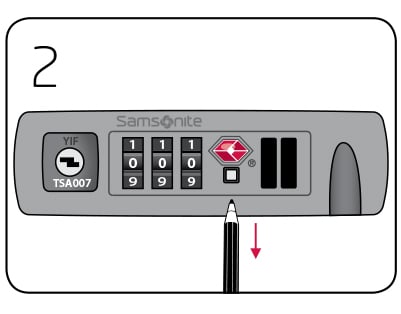

BASE BOOST 2

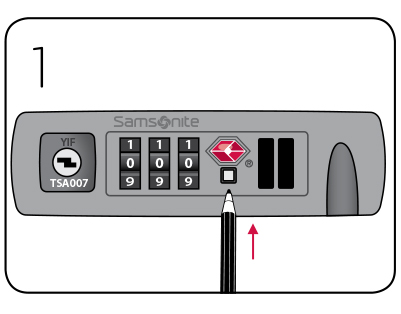

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

SET CHOSEN CODE

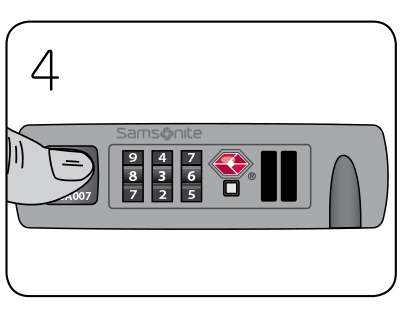

RELEASE BY PRESSING SIDE BUTTON

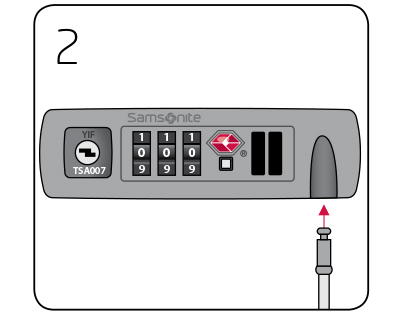

HOW TO SET THE CABLE LOCK

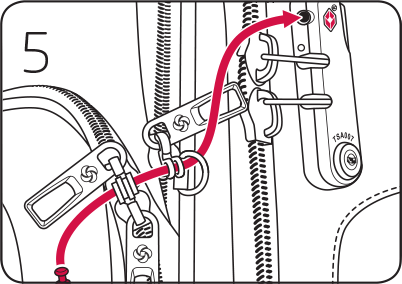

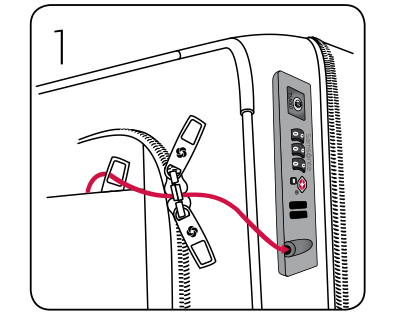

WEAVE THE CABLE THROUGH THE ZIP RINGS

SECURE CABLE INTO THE COMBINATION LOCK

Top

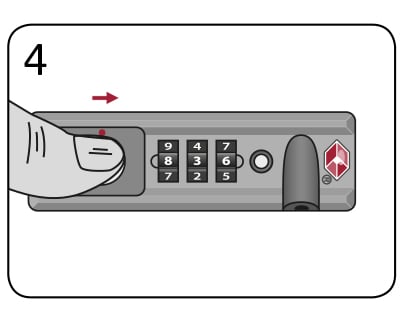

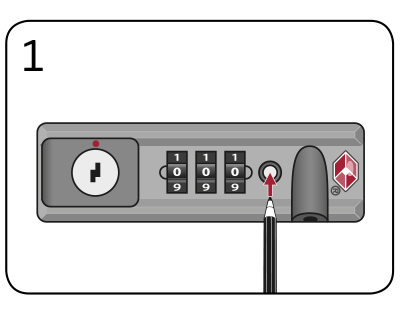

INFINIPAK

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

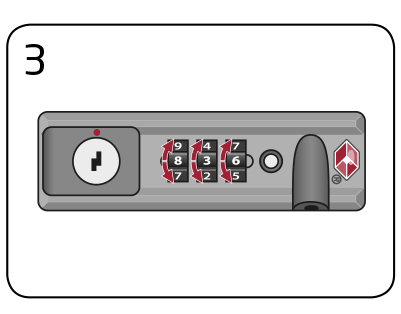

SET CHOSEN CODE

RELEASE BY PRESSING SIDE BUTTON

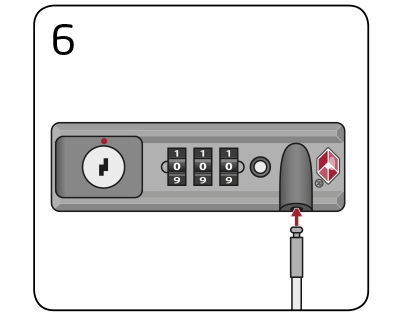

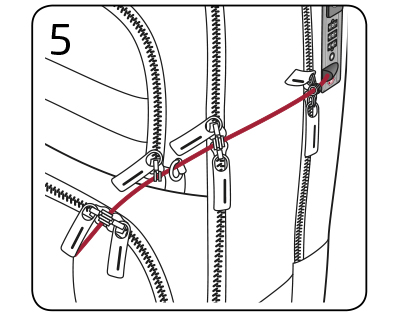

HOW TO SET THE CABLE LOCK

WEAVE THE CABLE THROUGH THE ZIP RINGS

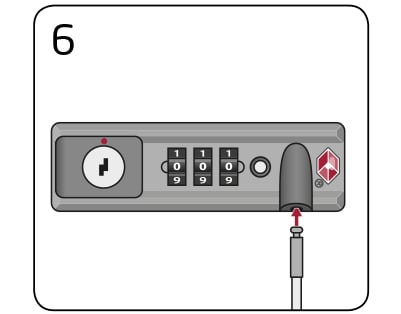

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON LITE-CUBE, LITE-CUBE DELUXE, B’LITE 3, OPTIC, OPTIC EXP, OCTOLITE, COSMOLITE 3.0, UPLITE SPL AND FUZE

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

SET CHOSEN CODE

RELEASE BY PRESSING SIDE BUTTON

Top

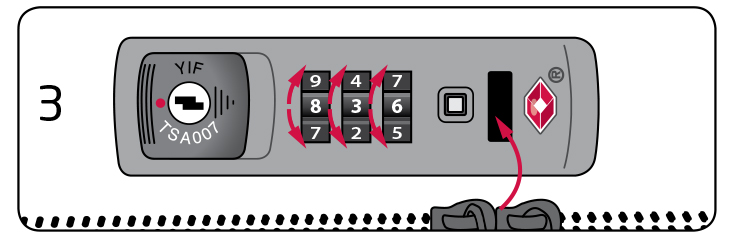

FEATURED ON LITE-SHOCK

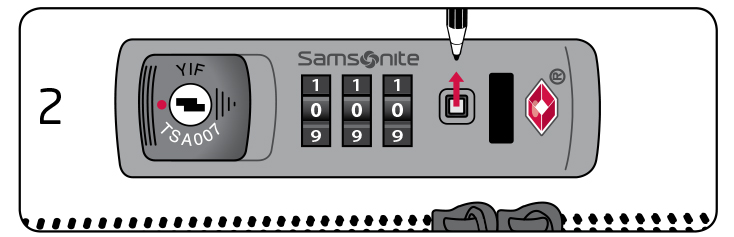

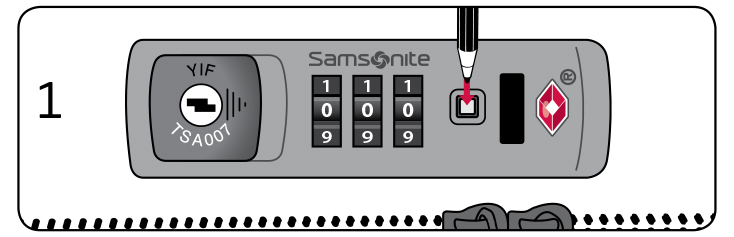

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

REMOVE PEN, BUTTON WILL STAY PRESSED IN

SET CHOSEN CODE & SECURE ZIPPERS INTO LOCK

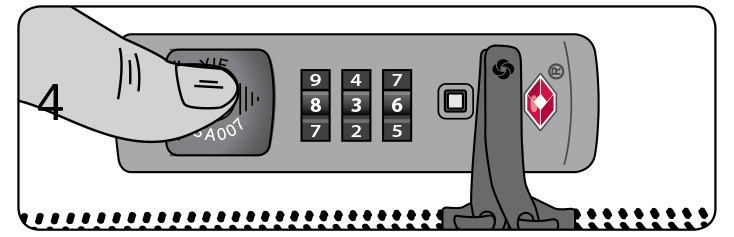

SLIDE BUTTON ACROSS TO SET CODE

Top

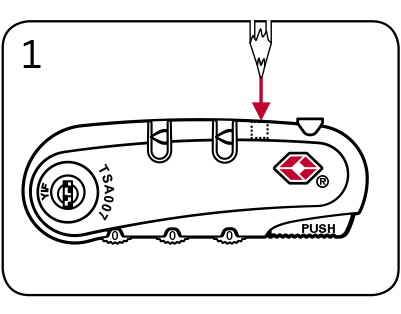

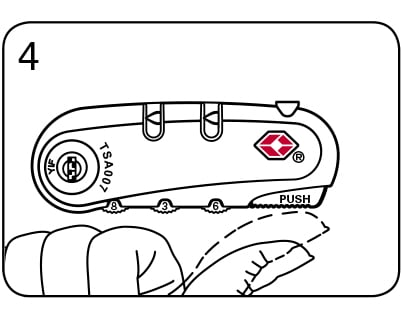

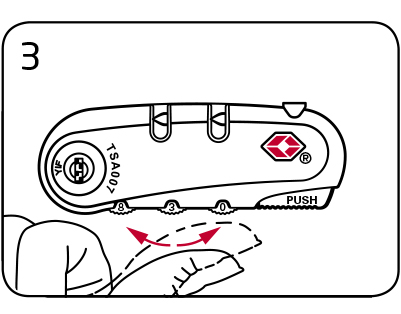

LITE-SPHERE SPL

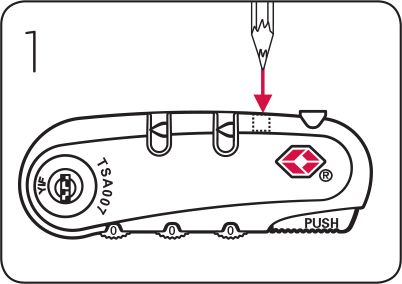

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

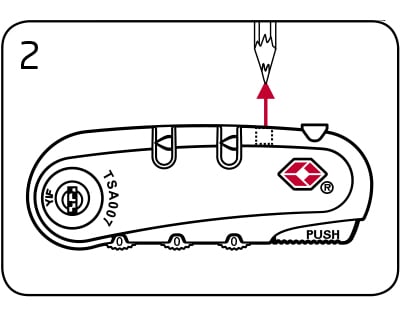

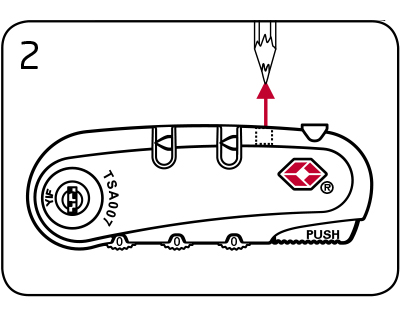

BUTTON AUTOMATICALLY STAYS PUSHED IN

SET CHOSEN CODE

RELEASE BY PRESSING SIDE BUTTON

HOW TO SET THE CABLE LOCK

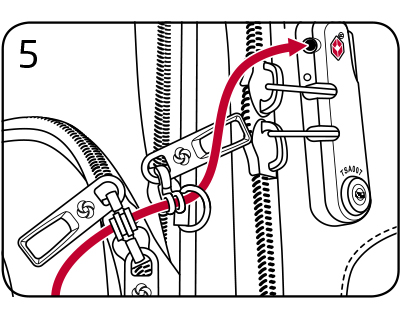

WEAVE THE CABLE THROUGH THE ZIP RINGS

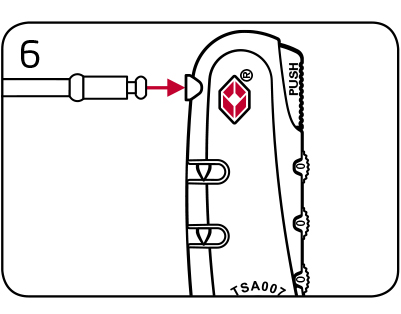

SECURE CABLE INTO COMBINATION LOCK

Top

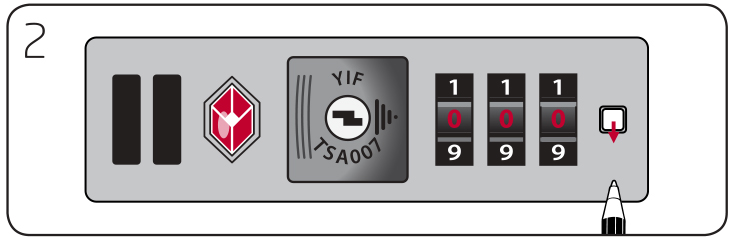

FEATURED ON PLATINUM LITE AND MEMPHIS

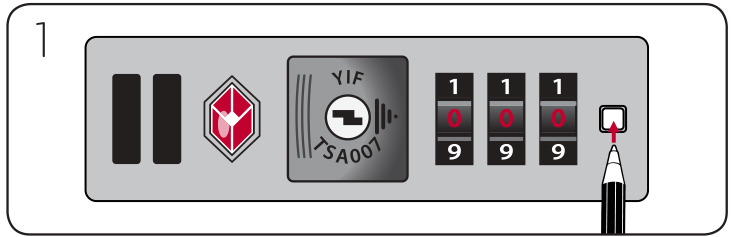

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

REMOVE PEN, BUTTON WILL STAY PRESSED IN

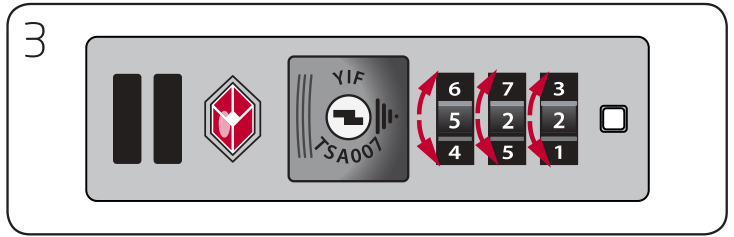

SET CHOSEN CODE

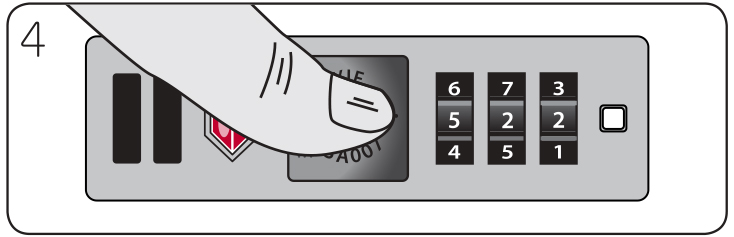

SLIDE BUTTON ACROSS TO SET CODE

Top

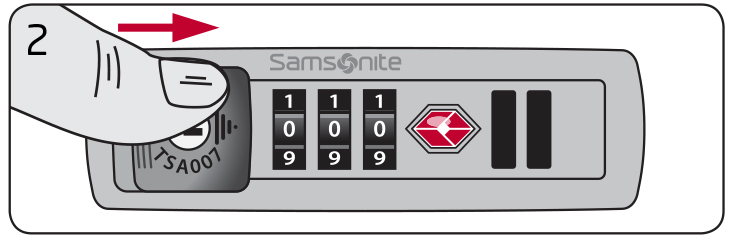

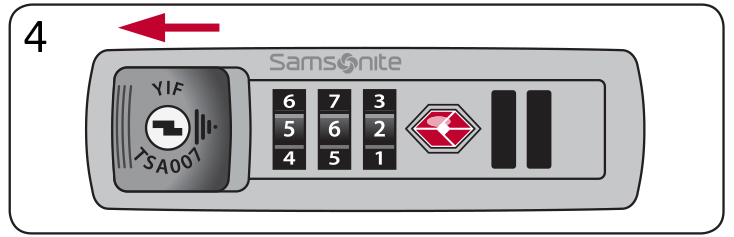

FEATURED ON PIXELON

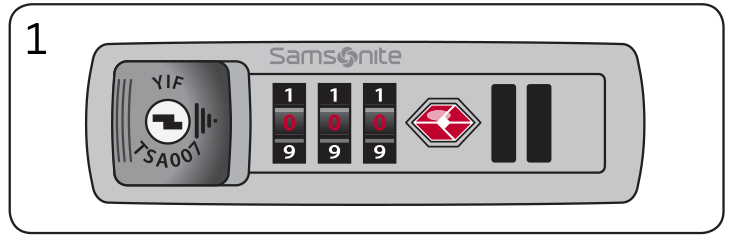

SET CODE TO 000

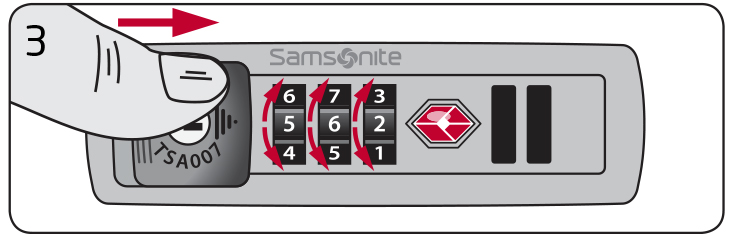

PUSH BUTTON ACROSS & HOLD

CONTINUE HOLDING BUTTON & SET CHOSEN CODE

RELEASE BUTTON

Top

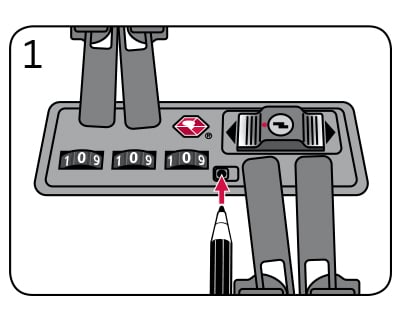

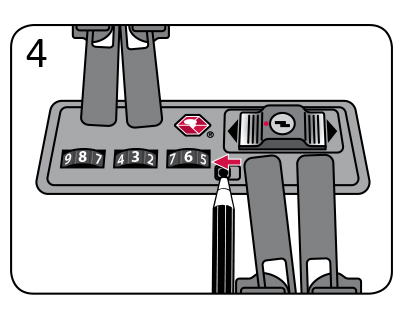

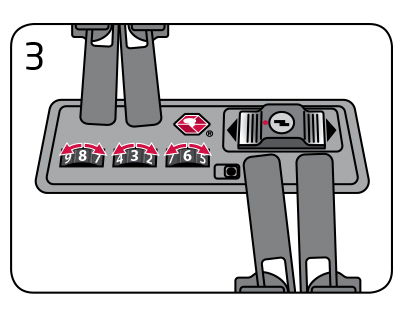

PRODIGY

SET CODE TO 000

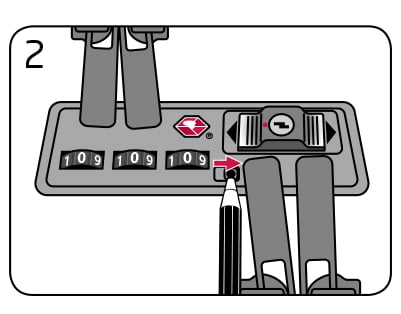

SET CODE TO 000 & PUSH IN BUTTON WITH PEN

SET CHOSEN CODE

MOVE BUTTON BACK TO ORIGINAL POSITION

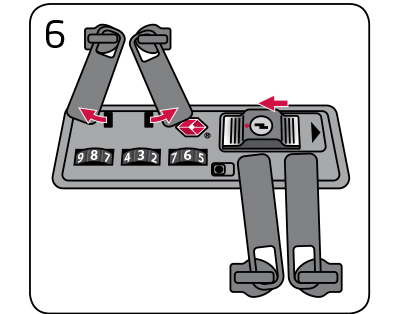

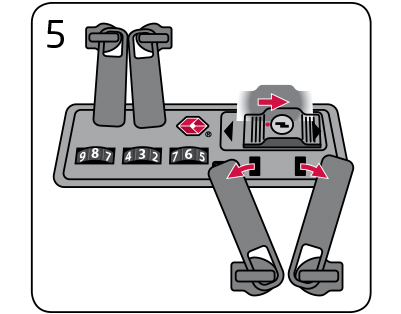

HOW TO RELEASE DUAL LOCK

SLIDE LOCK TO RIGHT TO RELEASE ZIPS

SLIDE LOCK TO LEFT TO RELEASE OPPOSITE ZIPS

Top

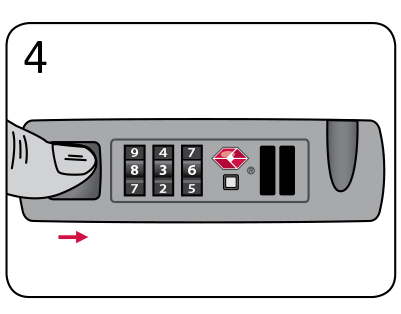

OCTOLITE SS AND SMARTTOP

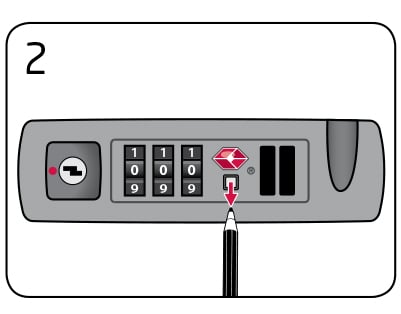

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

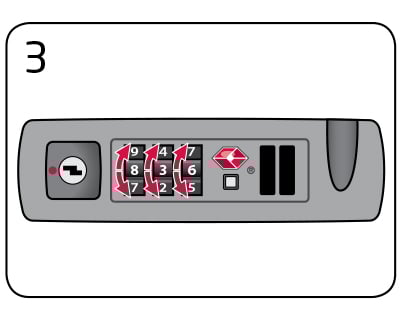

SET CHOSEN CODE

RELEASE BY PRESSING SIDE BUTTON

HOW TO SET THE CABLE LOCK

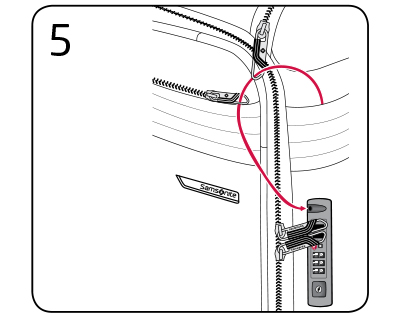

WEAVE THE CABLE THROUGH THE ZIP RINGS

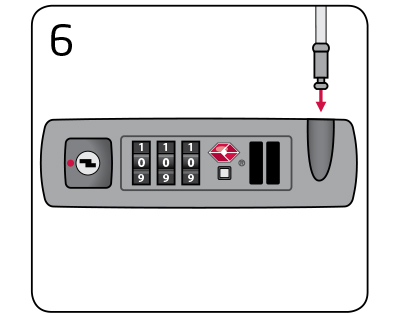

SECURE CABLE INTO COMBINATION LOCK

Top

FEATURED ON ENGENERO AND SPIN TRUNK

SET CODE TO 000

CONTINUE HOLDING BUTTON AND SET CHOSEN CODE

PUSH BUTTON ACROSS AND HOLD

RELEASE BUTTON TO SET NEW CODE

Top

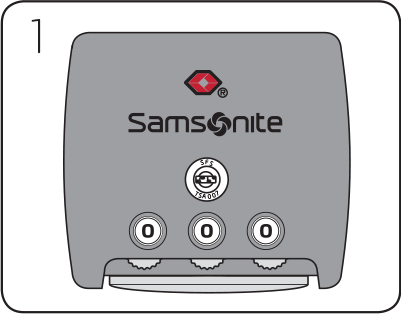

FEATURED ON LITE-LOCKED

SET CODE TO 000

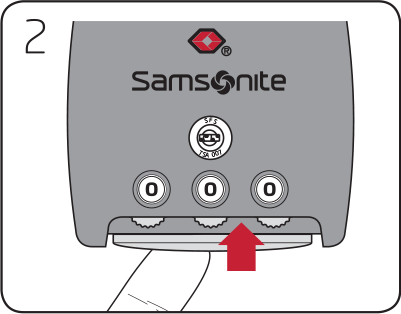

PULL LOCK UP

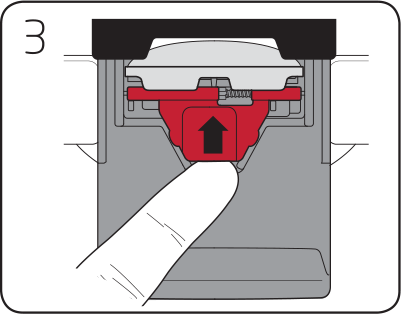

MOVE RED TAB UPWARDS

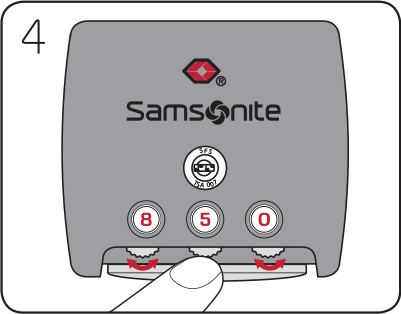

SET CHOSEN CODE

RETURN RED TAB TO ORIGINAL POSITION

COMPLETE

Top

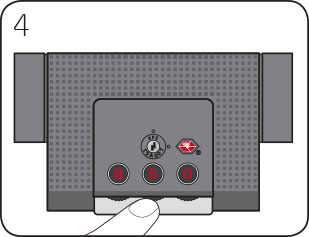

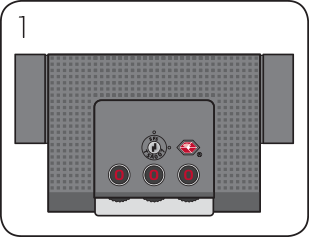

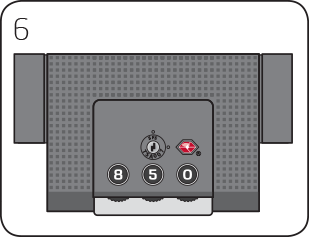

FEATURED ON S’CURE

SET CODE TO 000

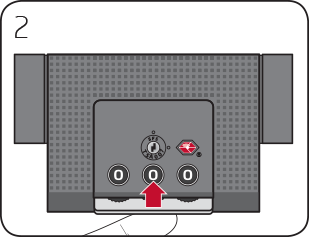

PULL UP LOCK

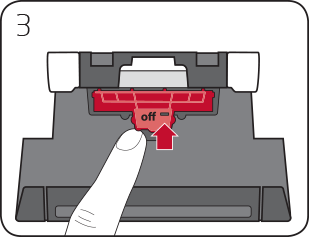

MOVE RED TAB TO OPEN POSITION

SET CHOSEN CODE

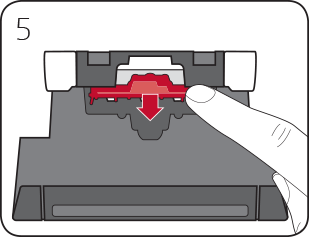

RETURN RED TAB TO ORIGINAL POSITION

COMPLETE

Top

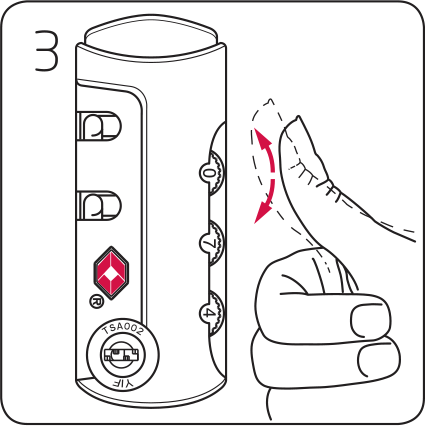

FEATURED ON FIRELITE

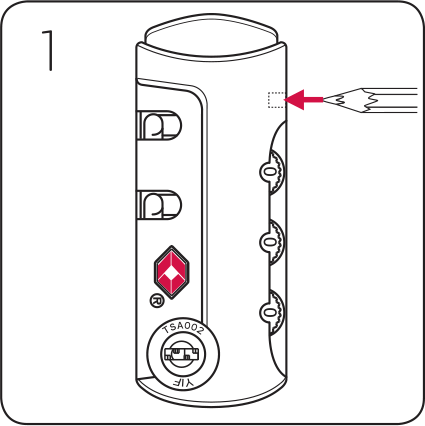

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

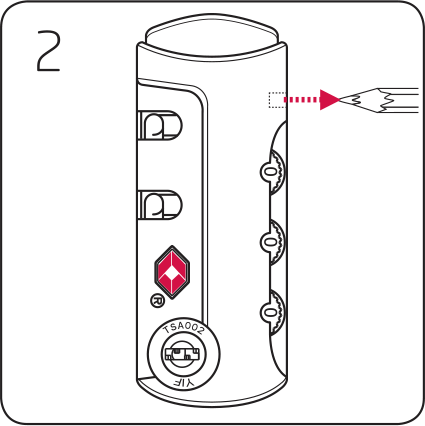

BUTTON AUTOMATICALLY STAYS PUSHED IN

SET CHOSEN CODE

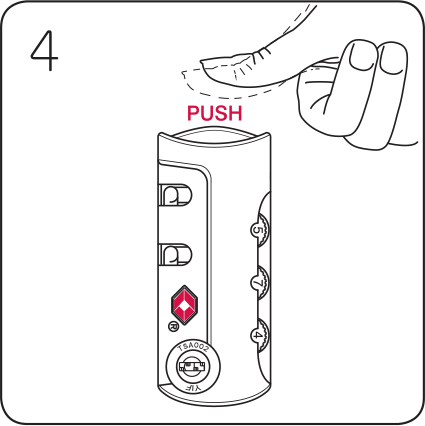

RELEASE BY PRESSING TOP BUTTON

Top

FEATURED ON DURANXT LITE

SET CODE TO 000 AND USE PEN TO PUSH IN BUTTON

RELEASE THE PUN, BUTTON WILL STAY PUSHED IN

SET CHOSEN CODE

PUSH TOP BUTTON TO SET THE NEW CODE

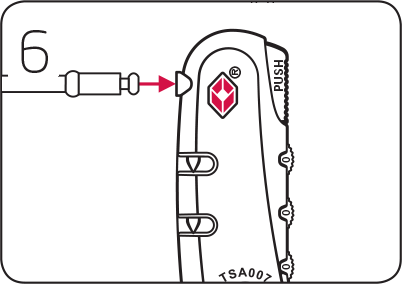

TO SET THE CABLE LOCK WEAVE THE CABLE THROUGH THE ZIP RINGS

SECURE CABLE INTO COMBINATION LOCK

Top

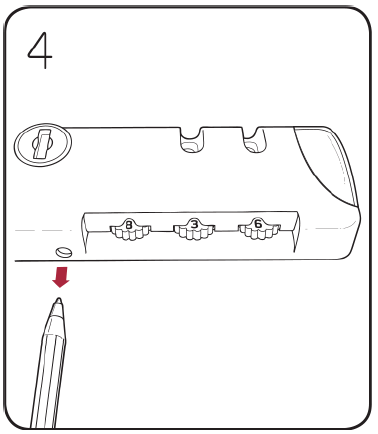

FEATURED ON SAVIO LEATHER IV

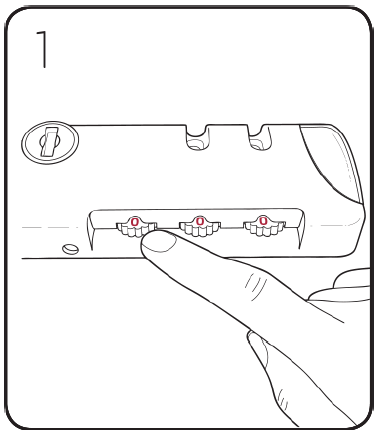

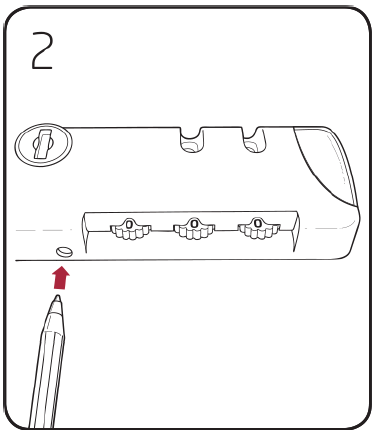

SET LOCK TO 000 & PUSH IN BUTTON WITH PEN

BUTTON AUTOMATICALLY STAYS PUSHED IN

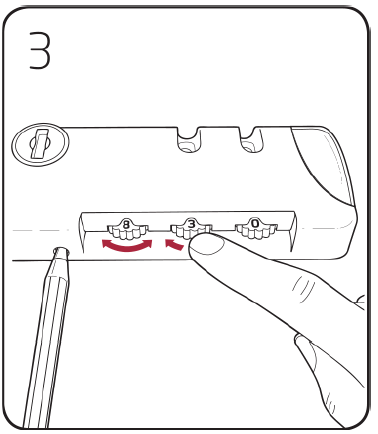

SET CHOSEN CODE

RELEASE BY PRESSING SIDE BUTTON

Top

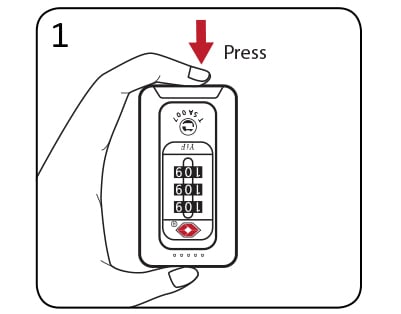

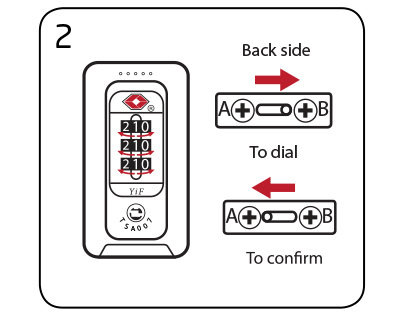

FEATURED ON TRU FRAME

PRESS BUTTON IN TO RELEASE LOCK

SET CHOSEN CODE

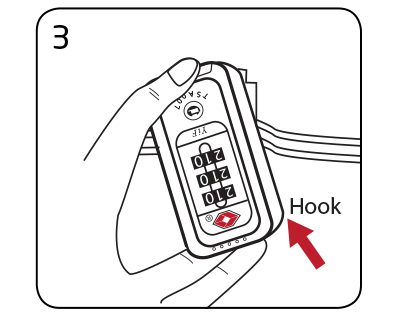

TWIST LOCK INTO HOOK TO SECURE

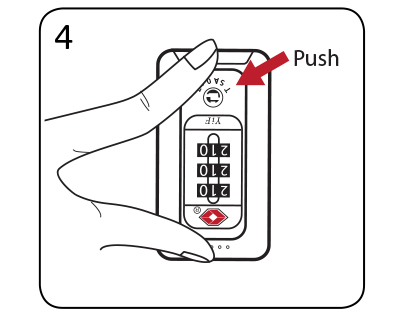

PUSH INWARDS TO SET LOCK
